Lets get serious now...

This is the perfect machine for LITERALLY any workshop or business that makes their own sheet metal parts.

Now, if you're looking at this machine but have never owned a CNC laser before, good on you, it's way easier than you may think, if you're looking at this machine to update or upgrade, then you will already know how good this machine will be!

With a growing number of workshops and fabricators moving to creating their own parts and cutting lead times, this machine with give you similar capabilities as spending $600k on a bigger brand machine, hell, buy 4 of these with change and you would have an insanely productive workplace!

But what makes this different to the rest?

- Machine designed specifically for Australia
- Real Australian general support
- 24/7 365 days a year online support (yes, even on New Years Day)
- Built to international ISO9001 quality standards
- Machines comes loaded with parameters ready to cut (this is a big one)
- Free technician setup*
- 2 year unlimited warranty
- Free starter pack of consumables
- Shipped direct to your factory

Specs you want to know!

Optional Power upgrade to 12kw - $8500

Maximum sheet size: 3000mm x 1500mm

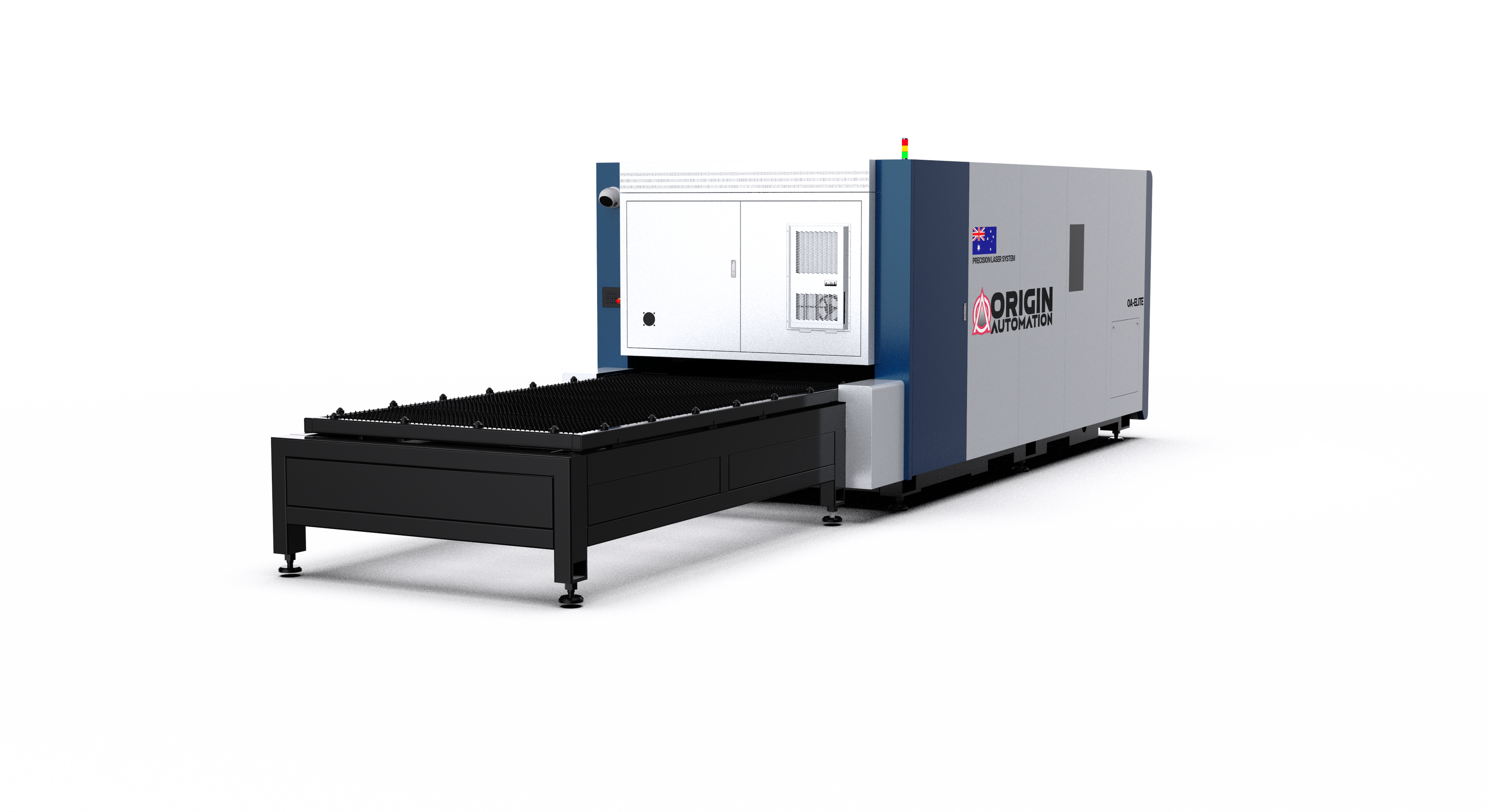

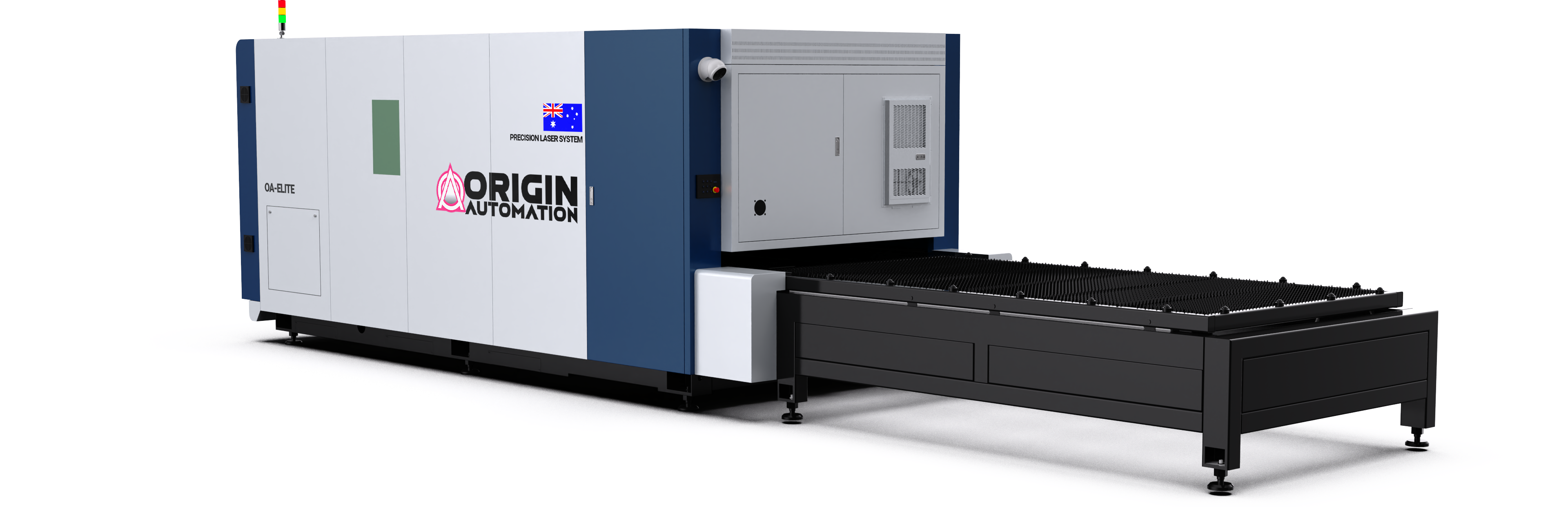

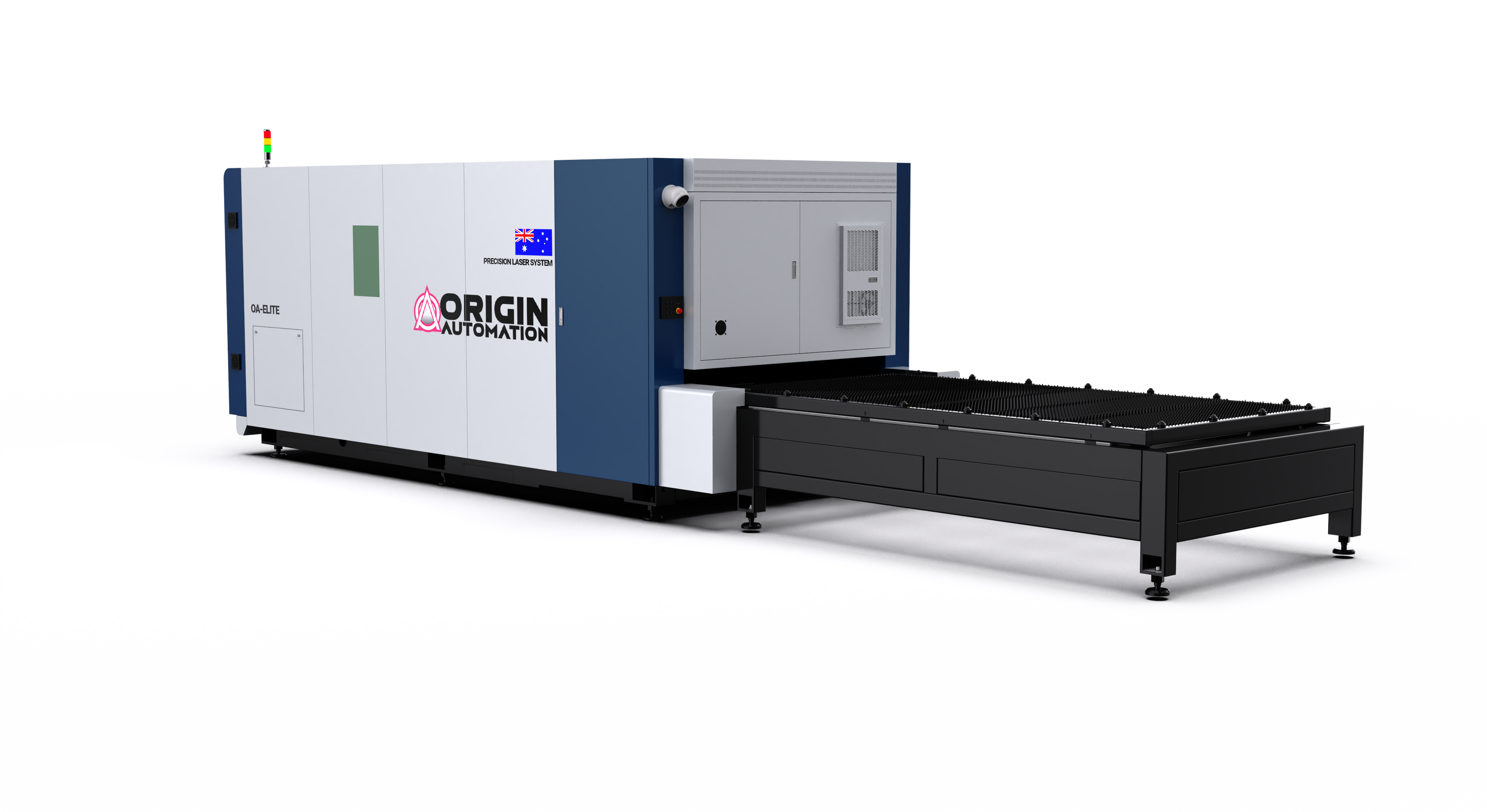

Automated sheet swap bed, one sheet is cutting while you are removing the previous sheet and parts and loading the new sheet, this essentially DOUBLES the productivity of a machine without the bed switching.

Maximum quality cut thicknesses (6kw):
Mild steel - 20mm
Aluminium - 10mm
Stainless steel - 12mm

Accuracy: +/- 0.05mm
Repeatability: +/- 0.02mm

Overall machine dimensions: 8300mm(L) x 2270mm (W) x 2340mm (H) (we recommend at least another 2-3m around the machine for machine accessories)

Fume extraction ports (fan not included)

Hypcut Laser Software on supplied computer

Multi camera monitoring

Safety Perimeter

Requires 3 phase power installed at time of setup.

Price: $120,000 Supplied and Installed*

20% deposit payable upfront, remainder due when the machine is ready to ship.
40 Day production time (if not in stock) and 30 day shipping time.

Need more info?

FAQ Section!

The nitty gritty of what we wished we knew 10 years back when we got our first machine, some of you seasoned pro's may already know!

Running Costs

General running costs vary depending on how much the machine operates, this is a guide for a machines that runs a few hours every day.
For most people here's some info that is handy:
The machine cuts mild steel with oxygen, we recommend people that cut every now and then get a E sized bottle to start and trade up to a 6 pack (6 bottles all connected together in a rack) or a 12 pack if it makes sense to do so, a 6 pack of oxygen usually lasts about 2 months

Cutting stainless and aluminium, you can use nitrogen but it's a big expense and generally gets used much faster than oxygen, the cut quality is fantastic but, we have a few customers who don't use nitrogen at all except for assisting cutting thicker stainless and aluminium.

In our opinion, the best all round gas is compressed air, it requires a super high pressure air compressor (16 bar) and an air drier to remove moisture, (you cannot use a normal compressor as any moisture will damage the lens in the head) but this is by far the most cost-effective way to cut all materials without the need to buy gas or rent bottles. (We sell a compressor compatible at a competitive rate)

As far as consumables go on the laser itself, you have the main protective lens, these are around $5ea and a machine that runs a few hours a day will need it changed every 2 or so weeks.

The nozzle on the end of the laser nearest to the workpiece would get changed every 6-8 months and these are about $25ea

The nozzle screws into a ceramic, this would get changed once a year or if you broke it, these are about $40ea

As you can see the costs of running the machine are almost insignificant in comparison to what it could make in a single day, let along an entire year.

How do I get my files onto the laser computer and what does the laser software actually do?

The process to cut a part is very easy, you will be cutting solo in just a matter of a few hours, once you have it mastered, you will be able to load and cut a part quicker than you can swap a cutting disk on a grinder!

The process to cut a single part:
Simply open a DXF file of your choosing into the program, set your lead in and out (where the laser starts to cut from, and where it finishes), set your material type from the predefined material list and press go. It's that simple!

Have a bunch of parts you want to nest and cut all at once?
Its just as easy, simply open all the DXF files you want to cut, set the quantity, do the lead in and lead outs for each part, click nest and let the machine do the rest! Once it has made the most optimised layout of the parts, hit cut and you're done!

Notes:
*Supplied and installed - Does not includes import fees, taxes and container transport.
*Free technician setup - this refers to the actual hours required for the technician to setup the machine at your premises, it is the machine purchaser's responsibility to cover local respectable accommodation, food and taxi to and from hotel and airport for the duration of the setup (approx. 2 days). Origin automation will cover the costs of the flights.
